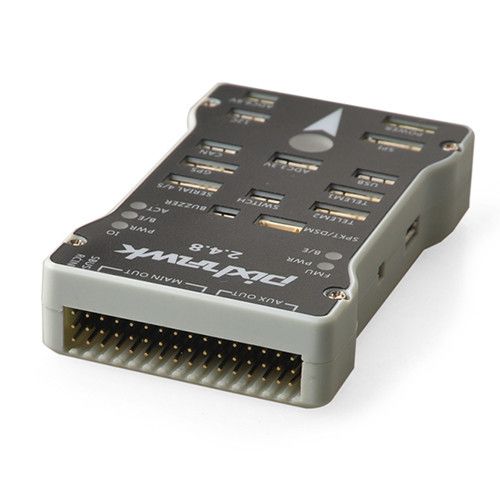

32bit Pixhawk PX4 Open Source Autopilot Flight Controller V2.4.8


$70.00

Add to Cart:


  • Description
  • Details
  • Reviews
  • Custom Tab
Features
Compatible with Alexmos2.2 or firmware below, compatible with newest German BruGi_050 firmware, default Russian2.2 firmwareTips A new generation of 32 bit processor control strong incoming, a board integrated with PX4FMU + PX4IO
Specifications:
Pixhawk PX4 32-bit Open Source Autopilot Flight Controller V2.4.8 W/ Safety Switch Buzzer processor
2 bit 1.32 STM32F427 flash Cortex M4, with hardware floating point processing unit
2 main frequency: 256K, RAM 168MHZ
3.32 bit STM32F103 backup co processor
Product Details
sensor
1.L3GD20 3 axis digital 16 bit gyroscope
2.LSM303D 14 / 3 axis accelerometer magnetometer
3.MPU6000 6 axis accelerometer / magnetometer
4.MS5611 high precision barometer
Interface
1.5 UART 1 compatible high voltage, 2 with hardware flow control
2.2 CAN
DSM/DSM2/DSM-X 3.Spektrum satellite receiver compatible input
SBUS 4.Futaba compatible input and output
5.PPM signal input
6.RSSI (PWM or voltage) input
7.I2C
8.SPI
9.3.3 and 6.6VADC inputs
10 external US MICRO




32bit Pixhawk PX4 Open Source Autopilot Flight Controller V2.4.8 W/ Safety Switch Buzzer
  • 100 Units in Stock

Be the first to write a review.  Write a Review.
Safety Tip


This product was added to our catalog on Wednesday 30 March, 2016.

Content

OFFTHEGRIDWATER.CA

Rc-toys Multi Rotor safty Tip Keep your PROPS OFF not installed until you are fully conversant/understand in full the functions of your Tx in full including TRAV (end Points), the arm and disarm procedures - realise that for a noob skiping or out-of-order set-up steps or moving sticks, or even static - PROPS may start at anytime without warning. Never install props prior to calibration of the ESC and testing the gyro orientation, and arm/disarm testing of the board - YOU are responsible - make sure your actions and your Copter is safe. Never ASSUME the props will not start - removing the props removes the risk.
