Power Distribution Board PDB with OSD BEC Output 5V 12V 3A LC FC


Add to Cart:

  • Description
  • Details
  • Reviews
  • Custom Tab

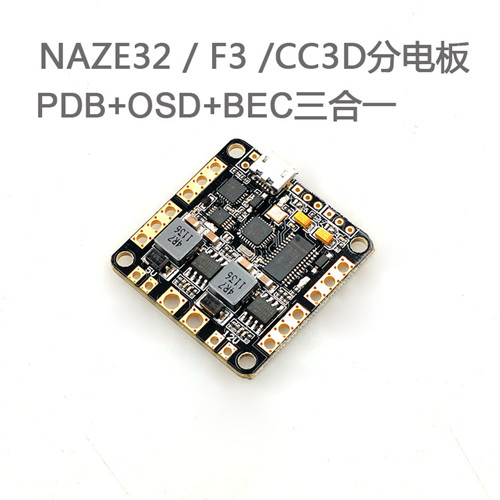

Distribution Board PDB with OSD BEC Output 5V 12V 3A LC Filter for Naze32 F3
Product Details
Brand Name: MXK
Item Name: PDB
Installation Hole Distance: 30.5mm(support for Naze32 CC3D,SP3, APMetc., the flight controller in 36*36 hole distance)
Function: PDB, Dual way BEC, LC Filter, OSD, Auto disconnect function between OSD and FC
Input Voltage: Support 2-6S,when the input voltage is 2-3S , can choose the 12V output via welding spot for battery voltage. The camare and VTX voltage can choose the 5V 12V via welding spot.
PCB with 2oz copper foil 4 layer board, ensure the large current.
Welding plate of battery and ESC arranged in pairs, more convenient for soldering.
Dual way BEC, DC-DC synchronous rectifier 5V voltage regulation(3A),come with LC filter.
With OSD function, support KVteam,MWOSD firmware etc., comes with FTDI When OSD connect to PC, it will auto disconnect with flight controller,TX RX Item Packing

  • 100 Units in Stock

Be the first to write a review.  Write a Review.
Safety Tip

This product was added to our catalog on Friday 27 May, 2016.



Rc-toys Multi Rotor safty Tip Keep your PROPS OFF not installed until you are fully conversant/understand in full the functions of your Tx in full including TRAV (end Points), the arm and disarm procedures - realise that for a noob skiping or out-of-order set-up steps or moving sticks, or even static - PROPS may start at anytime without warning. Never install props prior to calibration of the ESC and testing the gyro orientation, and arm/disarm testing of the board - YOU are responsible - make sure your actions and your Copter is safe. Never ASSUME the props will not start - removing the props removes the risk.
