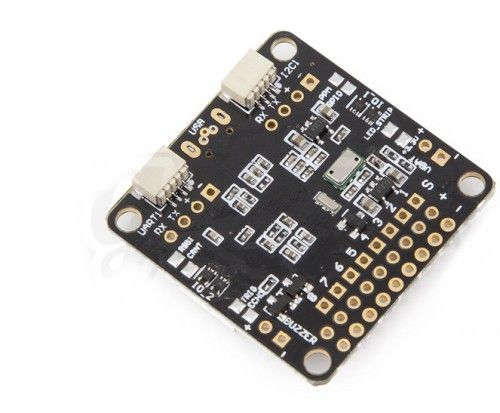

SP Pro Racing F3 Acro Flight Controller Board for Aircraft FPV

$45.99  $35.99
Save: 22% off

Add to Cart:

  • Description
  • Details
  • Reviews
  • Custom Tab
Features Condition: Brand New
*Model: Acro
*Next-generation hardware for your multi-rotor
*The Seriously Pro Racing F3 Flight Controller (SPRacingF3) was designed to give awesome flight performance based on tried and tested sensors whilst also providing unparalleled and I/O capabilities in a small and extremely lightweight form-factor using a next-generation CPU.
*Flight Performance: The SPRacingF3 builds on tried and tested software, processor and sensor technology to make your aircraft fly like it's on rails. *Configurable. The SPRacingF3 runs Cleanflight which can be configured to suit your needs using a cross-platform GUI (Windows/OSX/Linux).
*Flight Logging. On-board high-capacity black box flight log recorder - optimize your tuning and see the results of your setup without guesswork. *Developer Friendly.Developer friendly debugging port (SWD) and boot mode selection, unbrickable bootloader.
*Broad RC receiver Support. Supports SBus, SumH, SumD, Spektrum1024/2048, XBus, PPM, PWM receivers.
(No external inverters required (built-in).) *Battery Monitoring. Battery monitoring ports for voltage and current. *I2C Port. I2C port always powered, perfect for external sensors or always-on OLED Screen.
*No-Compromise I/O.Use all the features all the time; e.g. Connect your OSD + SmartPort + SBus + GPS + LED Strip + Battery Monitoring + Sonar + 8 motors - all at the same time!
*Tiny and lightweight. The SPRacingF3 has a standard 36x36mm form-factor with 30.5mm mounting holes and weighs just 6 grams.
*Next-Generation CPU. The SPRacingF3 has an ARM Cortex-M4 72Mhz CPU with Math co-processor (FPU) for efficient flight calculations that
gets more done in less time. Loop times up to ~2x as fast as previous-generation STM32F1 based boards. *OneShot ESC. Full support for OneShot ESCs for easy PID tuning and a sharper response.
*Programmable LED. Dedicated output for programmable LEDs - great for orientation, racing and night flying.
*Sonar. Sonar support for precision low-altitude hold.
*Buzzer port for audible warnings and notifications.
*The SPRacingF3 gives you all the features you need for the heart of your aircraft, whether you're into FPV racing, acrobatic flying or aerial photography it's perfect.
*Supports a variety of aircraft, tricopters, quadcopters, hexacopters, octocopters, planes and more.
The SPRacingF3 Design is:
*Practical - Easy to access connectors and solder pads.
*Configurable - Choose to use connectors, solder pads or pins.
*Stackable - Mount to your PDB or OSD.
*Compact - Only 36x36mm.
*Professional - Symmetrical, Neat and Tidy.
*3 primary flight modes: Acrobatic, Angle and Horizon
*Extensive control and switch configuration
*Telemetry Support (HoTT, FrSky, SmartPort, etc)
*Battery Monitoring and Warnings
*Signal Strength Monitoring (RSSI)
*Failsafe system
*Altitude Hold Mode (Requires Barometer Sensor)
*Heading Hold Mode (Requires Compass Sensor)
*In-flight tuning
*Customizable LED colors
*Android phone support (via EZ-GUI GCS)
Product Details
*36x36mm board with 30.5mm mounting holes
*Weight : 6 grams
*STM32F303 CPU, 72Mhz inc FPU
*High-Capacity Flash (Acro and Deluxe)
*MPU6050 accelerometer/gyro
*MS5611 barometer (Deluxe only)
*HMC5883 compass (Deluxe only)
*MicroUSB socket
*2x 8pin JST-SH sockets (PPM, PWM, SERIAL RX, GPIO, ADC, 3V, 5V, GND)
*8x 3pin though-holes for pin headers for ESC/Servo connections
*2x 4pin though-holes for pin headers for 2x serial ports
*1x 2pin though-holes for pin headers for battery voltage
*1x 2pin though-holes for pin headers for buzzer
*1x 4pin JST-SH socket for I2C
*1x 4pin JST-SH socket for SWD debugging

  • 100 Units in Stock

Be the first to write a review.  Write a Review.
Safety Tip

This product was added to our catalog on Tuesday 24 November, 2015.



Rc-toys Multi Rotor safty Tip Keep your PROPS OFF not installed until you are fully conversant/understand in full the functions of your Tx in full including TRAV (end Points), the arm and disarm procedures - realise that for a noob skiping or out-of-order set-up steps or moving sticks, or even static - PROPS may start at anytime without warning. Never install props prior to calibration of the ESC and testing the gyro orientation, and arm/disarm testing of the board - YOU are responsible - make sure your actions and your Copter is safe. Never ASSUME the props will not start - removing the props removes the risk.
