BGC 2-axis Brushless Gimbal Controller - Large Current Edition


$59.99

Add to Cart:


  • Description
  • Details
  • Reviews
  • Custom Tab
Features

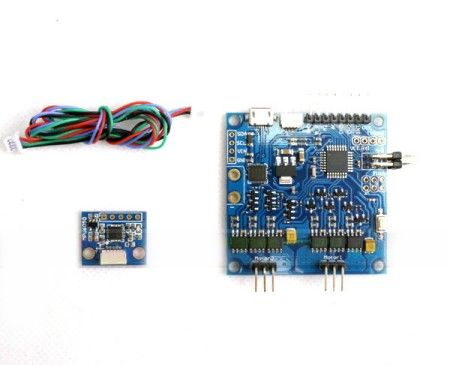

BGC 2-axis/ 2-axle Brushless Gimbal Controller - Large Current Edition
- With V3.0 firmware
- Adopts MOSFET replacing L6234D, provids higher driving power.
- Spare IIC port can connect to expansion board directly, no jump wire is needed.
- Can work at 5A continuously (heat sink is suggested in this case), and peak current up to 10A.

* THIS CONTROLLER CAN NOT BE FLASHED WITH OTHER VERSION FIRMWARES!
Product Details
-BGC 2-axis/ 2-axle Brushless Gimbal Controller - Large Current Edition | V3.0
-Weight: 15g (including sensor and wire)
-Main board size: 50 x 50mm
-Continuous working current: 5A (when work at 5A continuously, heat sink is highly recommended)
-Peak current: 10A
-Power input: max 4S/ 16.8V (12V/ 3S is suggested)
-Supported motor size: 2 to 8 series (motors for cameras from Gopro to Red Epic
BGC 2-axis Brushless Gimbal Controller - Large Current Edition
  • 43 Units in Stock

Be the first to write a review.  Write a Review.
Safety Tip

Product 23/45

 Prev
 All
 Next

This product was added to our catalog on Tuesday 24 September, 2013.

Content

OFFTHEGRIDWATER.CA

Rc-toys Multi Rotor safty Tip Keep your PROPS OFF not installed until you are fully conversant/understand in full the functions of your Tx in full including TRAV (end Points), the arm and disarm procedures - realise that for a noob skiping or out-of-order set-up steps or moving sticks, or even static - PROPS may start at anytime without warning. Never install props prior to calibration of the ESC and testing the gyro orientation, and arm/disarm testing of the board - YOU are responsible - make sure your actions and your Copter is safe. Never ASSUME the props will not start - removing the props removes the risk.
