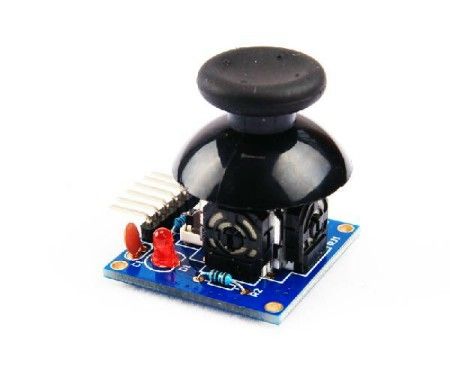

Joystick Controller 3rd Axis Extension Board for Handheld Gimbal


$9.99

Add to Cart:


  • Description
  • Details
  • Reviews
  • Custom Tab
Features
Simple Rocker 0.9 is the extension board for Simple Rocker 1.2. Output YAW through left-right control; Output camera signal through up-down control. (Applicable to camera focus and shutter trigger.) When main board assembled with extension board, the output interface is on main board. PMW1 and PMW2 are both output same signal- camera signal. ROLL, PITCH, and YAW are controlled through serial ports. Camera signal is usually turned off. Press the joystick on main board to activate output PWM, and release the joystick to turn it off. Product Details
-Joystick Controller Simple Rocker 1.2 for Handheld Brushless Gimbal (Main Board Only)
Joystick Controller 3rd Axis Extension Board for Handheld Gimbal
  • 99 Units in Stock

Be the first to write a review.  Write a Review.
