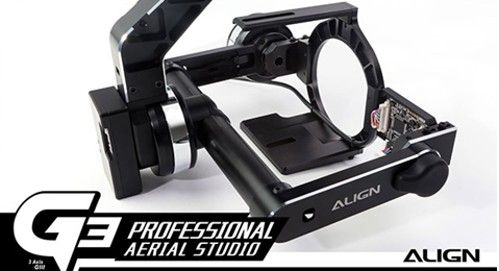

Align G3-5D 3-Axis Brushless Gimbal Camera Mount RGG302


$1,599.99

 Sold Out

  • Description
  • Details
  • Reviews
  • Custom Tab
Joe Doe Align Features 3-axis brushless gimbal for Canon 5D series or similar sized cameras. Features strong brushless mtors which makes camera balance less critical. Built in HDMI to AV converter allows live video output into the optional video transmitter. This gimbal system is a stand-alone design independent of the flight controller.
Features:
- Utilizes with PC and bluetooth for iOS and Android system
- Internal receiver function can be compatible with systems on the markte
- Standalone system can be operated sperately
- Support Pinpoint and Panoramic photography
- Design for handheld gimbal system
- High locking, high resolution and brushless motor
- Internal HDMI-HD/AV module
Product Details
- Input: DC12V 3S
- Current consumption: <500mA
- Control range: Pan 360degree; Roll +/-30degree, Tilt 90degree
- Max.controllable rotation speed: Pan 60°/S; Roll 60°/S; Tilt 60°/S
- Work temperature: -20~80°C
- Receiver output: 5V 0.5A
- Dimension: 59.5*35*16.4mm
- Weight: 1250g
HDMI to AV Specifications:
- Input voltage: DC 12V(3S)
- Power consumption: 1800mW (12V/150mA)
- Camera suitable G3-5D: Canon 5D or similar
- Input format support: 1800mW/ 50HZ/60HZï¼›720P/ 50HZ/60HZï¼›576P/ 50HZ/60HZï¼›480P/ 50HZ/60HZï¼›1080I/ 50HZ/60HZï¼›576I/ 50HZ/60HZï¼›480I/ 50HZ/60HZ
- Output format: NTSC(480I)
- Output resistance: 75Ω
- Work temperature: -20~65°C (-4 ~ 149°F)
- Dimension: 42x32x7mm
