DJI 3-Axis Stabilized Handheld Gimbal System


$3,010.99

Add to Cart:


  • Description
  • Details
  • Reviews
  • Custom Tab
Features

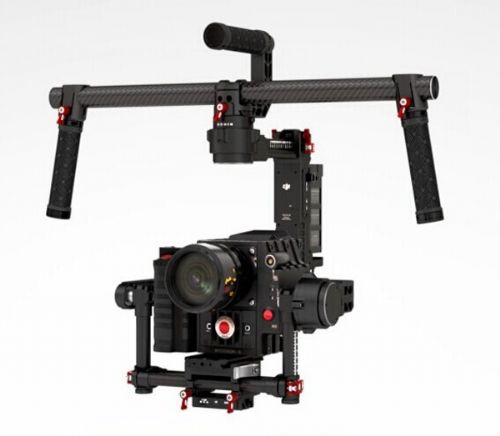

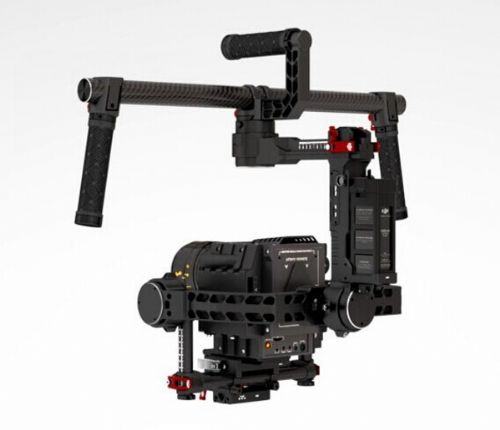

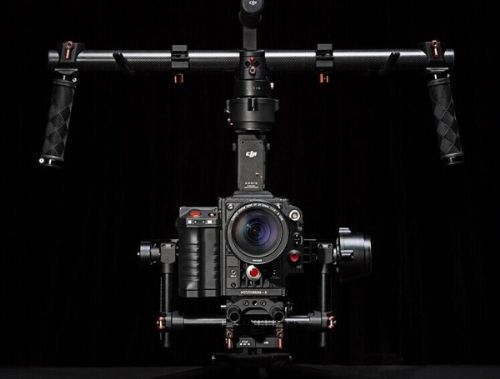

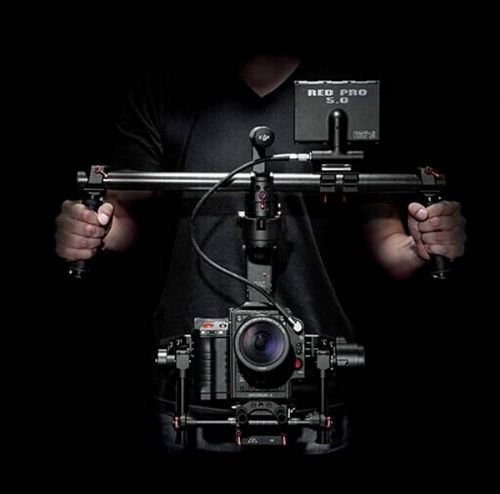

DJI 3-AXIS STABILIZED HANDHELD GIMBAL SYSTEM
The DJI Ronin has been developed for the filmmaking professional. High build quality standards ensure that it keeps up with the demands of rigorous handheld use in trying environments. Simply hold it in your hands to create smooth and stable footage. Custom built ultra-fast processors, extremely accurate sensors, and advanced algorithms, together with fanatical attention to detail has created a system that offers remarkably precise manipulation of control angles - within the range of ±0.02°. This puts world-class, industry leading technology into your hands and creates unparalleled picture and video stabilization.

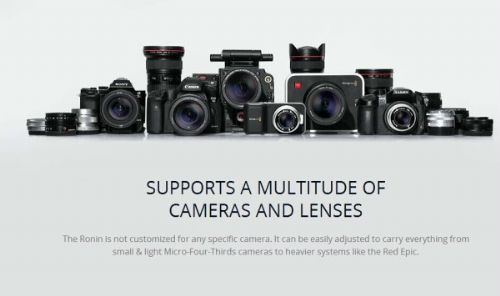

The Ronin is not customized for any specific camera. It can be easily adjusted to carry everything from small & light Micro-Four-Thirds cameras to heavier systems like the Red Epic.
Product Details
Three Operation Modes
· Underslung Mode

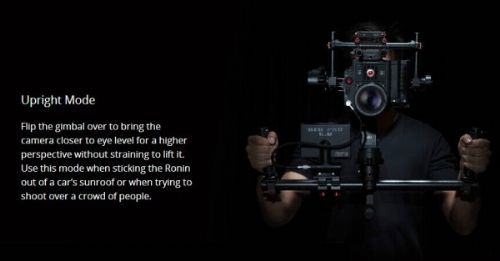

· Upright Mode
· Briefcase Mode
Built-in independent IMU module
DJI Specialized Gimbal Drive Motors with Encoders
Bluetooth Module
USB Connection
2.4GHz Receiver
Temperature Sensor
DJI Advanced 32-Bit DSP Processor
D-Bus/PPM Receiver Supported
Accessory Power Connections:12V regulated P-Tap x 2, USB 500mW x 1, DJI Lightbridge x 1
GCU Input Power:4S Ronin Battery
Connections:2.4GHz Remote Control, Bluetooth, USB
PC Assistant Software Requirements:Windows XP SP3; Windows 7; Windows 8 (32 or 64 bit)
Mobile Assistant Software Requirements:iOS version 6.1 or above Mobile Device iPhone 4s, iPhone 5, iPhone 5s, iPod touch 4, iPod touch 5 , iPad 3, iPad 4, iPad mini
Operating Temperature:-15°C ~ 50°C (5°F ~ 120°F)
Weight:4.20kg (9.26lbs) fully loaded with handlebar
Gimbal Dimensions:620mm(W) x 280-380mm (D)x 500mm(H)
Supported Camera Dimensions:Maximum depth at center of mass on camera base plate: 140mm
Maximum height measured from top of camera base plate: 225mm
Maximum width: 195mm






  • 5 Units in Stock

Be the first to write a review.  Write a Review.
