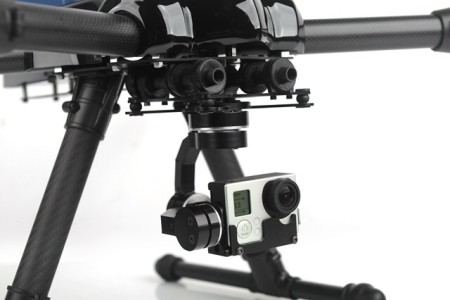

GOPRO 3 Axis Gimbal X-CAM A10-3H for kong copter


Add to Cart:

  • Description
  • Details
  • Reviews
  • Custom Tab
1.Use the slip ring, and the third shaft can be 360 degrees of unlimited rotation
2. At the same time when shooting can give GOPRO3 power supply in order to achieve long shooting ability
3. Provide after head and locks model, and provides a key to the nose
4. Use separate position sensor, head almost no cumulative error mode
5. Pitch, roll and the direction of 3 axis can be independently controlled
6. 5 v power supply system independent electricity usage, about 500 ma
(excluding GOPRO charging), in the case of BEC enough power consumption can be directly from the receiver
7. Stabilization rate of 5200 hz, provide exquisite and stable effect
Product Details
-Weight: 280g ( without GOPRO )
-Stabilization frequency: 5200Hz
-Input voltage: 7.4v ~ 16.8v ( 2S ~ 4S Lipo )
-Tilt travel: +-90 degree; Roll travel: +-45 degree
-YAW travel: 360 degrees unlimited rotation
-AV ouput & Charging Module has been insided
-Does not need any Auto Pilot System supporting
-3 Gyro sensors & 1 Position sensor inside
-Supports automatic location function
The S-BUS output provides full functions, all function has been defined
channel number:
Channel 1 : ROLL Control
Channel 2: Return to HOME
Channel 3: TILT Control
Channel 4: YAW Control
Channel 5: Mode switch
The recommend operation ways
1. Single person: Just connect PPM channel for switch HEAD FOLLOWING , HEAD LOCK and AUTO BACK TO HOME, does not need to connect S-BUS channel, One receiver can be used.
2. Two persons: Does not need to connect PPM channel, only S-BUS output channel provides full functions. But needs 2 receivers
Notice: It does not need provide power to the receiver when you using two person mode, the A10-3H controller will provide the power to the receiver via the S-BUS.
1.Do not touch the gimbal during the initialization after turn on, Keep the gimbal in quietude
2.Do not use BEC for the gimbal power, pls use 2~4S Lipo battery
3.Strongly suggest using 12mm tube to mount the gimbal
4.Make sure the center of gravity of the gimbal is correct before using.
GOPRO 3 Axis Gimbal X-CAM A10-3H for kong copter
GOPRO 3 Axis Gimbal X-CAM A10-3H for kong copter
GOPRO 3 Axis Gimbal X-CAM A10-3H for kong copter
GOPRO 3 Axis Gimbal X-CAM A10-3H for kong copter
GOPRO 3 Axis Gimbal X-CAM A10-3H for kong copter
GOPRO 3 Axis Gimbal X-CAM A10-3H for kong copter
  • 100 Units in Stock

Be the first to write a review.  Write a Review.
Safety Tip

This product was added to our catalog on Wednesday 20 August, 2014.



Rc-toys Multi Rotor safty Tip Keep your PROPS OFF not installed until you are fully conversant/understand in full the functions of your Tx in full including TRAV (end Points), the arm and disarm procedures - realise that for a noob skiping or out-of-order set-up steps or moving sticks, or even static - PROPS may start at anytime without warning. Never install props prior to calibration of the ESC and testing the gyro orientation, and arm/disarm testing of the board - YOU are responsible - make sure your actions and your Copter is safe. Never ASSUME the props will not start - removing the props removes the risk.
