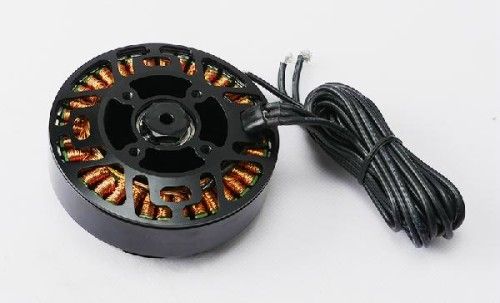

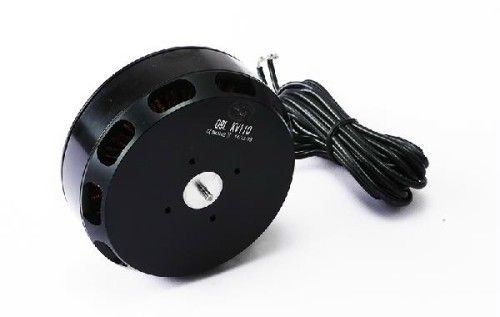

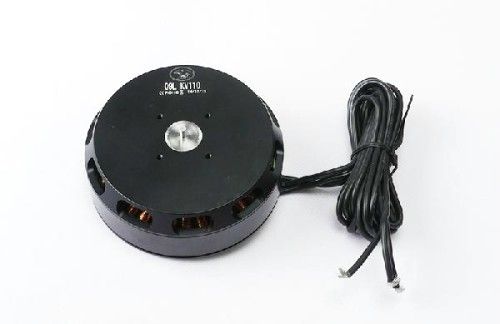

Hengli Q9L 8314 110KV Brushless Motor 6-12S for RC Multirotors
| Q9L 36N40P |
|
|
| Motor Type | Q9L KV90 | Q9L KV110 |
| Iron Core Size（mm） | 8314 |
| Motor Size（mm） | ï¿ 92*36 |
| Weight | 586g |
| Idle Current(24V) | 0.8A | 1.1A |
| Support Lithium Battery | 8-14S LiPo | 8-14S LiPo |
| Max Continuous Current（A） | 41 | 45 |
| Max Continuous Power（W） | 2000 | 2100 |
| Internal Resistance | 0.133Ω | 0.091Ω |
| Test Parameters and Assembly |
| Motor Type | Lithium Battery | Propeller | Appropriate Take-off Weight |
| 4 (axle) | 6(axle) | 8(axle) |
| Q9L KV90 | 12S | 3080 | 13KG-17KG | 19KG-25KG | 26KG-33KG |
|
| |
| Current(A) | 6 | 9 | 12 | 15 | 18 | 21 | 27 | 33（MAX） |
| Pulling Force(g) | 2650 | 3570 | 4230 | 4960 | 5500 | 6120 | 7150 | 8180 |
| Power(W) | 288 | 432 | 576 | 720 | 864 | 1008 | 1296 | 1584 |
| Efficiency(g/W) | 9.201 | 8.264 | 7.344 | 6.889 | 6.366 | 6.071 | 5.517 | 5.164 |
| |
| Motor Type | Lithium Battery | Propeller | Appropriate Take-off Weight |
| 4 (axle) | 6(axle) | 8(axle) |
| Q9L KV110 | 12S | 2560 | 13KG-16.5KG | 19KG-24.5KG | 26KG-32.5KG |
|
| |
| Current(A) | 4 | 8 | 12 | 16 | 20 | 24 | 28 | 32（MAX） |
| Pulling Force(g) | 1810 | 3080 | 4040 | 4890 | 5840 | 6670 | 7050 | 7960 |
| Power(W) | 192 | 384 | 576 | 768 | 960 | 1152 | 1344 | 1536 |
| Efficiency(g/W) | 9.427 | 8.021 | 7.014 | 6.367 | 6.083 | 5.790 | 5.246 | 5.182 |
