AIO HD 1080P FPV Wireless Transmitter DV Camera 5.8G 400mW 32CH

Camera

FOV

150 degrees (Diagonal)

LENS Rotation range

±45 degrees

Resolution

1920x1080p30,1280x720p60, 1280x720p30

Micro SD

Support to 32GB

Video Compression

h.264


JPEG

Record quality

High,Mid,Low

Microphone

Digital

Wireless Transmitter

ISM 5.8GHz 32 Channel, Transmitter.

Frequency

Band

CH 1

CH2

CH3

CH4

CH5

CH6

CH7

CH8

A

5865M

5845M

5825M

5805M

5785M

5765M

5745M

5725M

B

5733M

5752M

5771M

5790M

5809M

5828M

5847M

5866M

E

5705M

5685M

5665M

5645M

5885M

5905M

5925M

5945M

F

5740M

5760M

5780M

5800M

5820M

5840M

5860M

5880M

RF Output Power

24dBm±1dBm

RF Output Impedance

50ohm, SMA port

USB

  Micro USB 5Pin, High speed USB 2.0

Power Supply

DC IN

DC 5 / 1.2A

Built-in Li-Ion battery

3.7V/ 500mAh

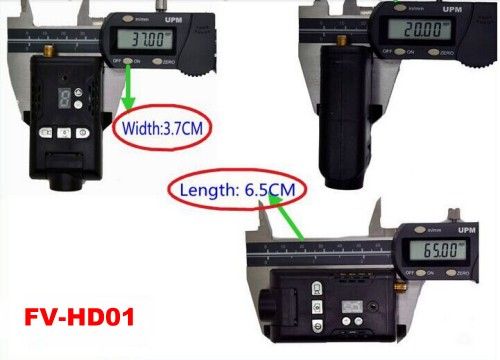

Dimensions

65(L)X37(W)X20(H)mm (Not include prominent part)

Weight

   g

Operating Temperature

0℃~+50℃
