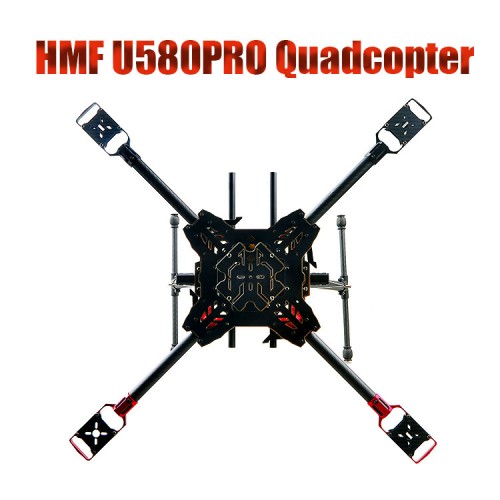

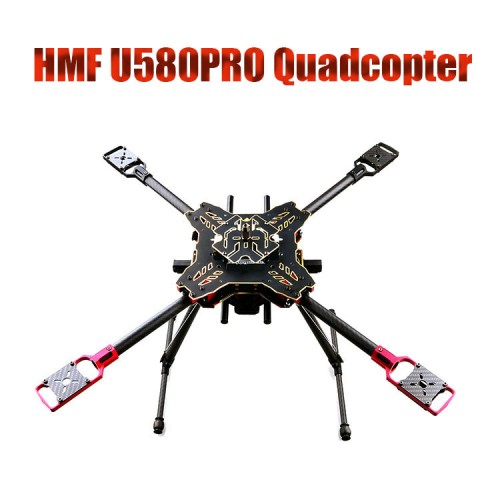

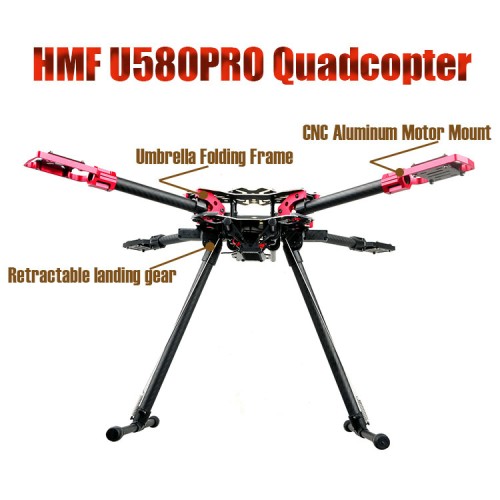

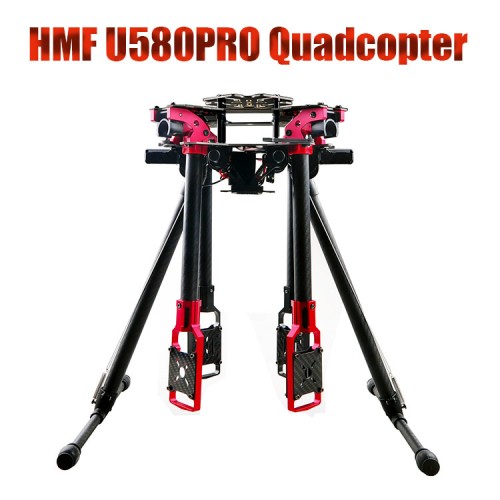

4-Axis Umbrella Folding Quadcopter Frame Kit with Retractable LD


Add to Cart:

  • Description
  • Details
  • Reviews
  • Custom Tab
Features - Learn S800 design, arm with up-tilt angle
- Unique umbrella folding structure, no blank position, easy to carry
- With gimbal suspension bar, suit for most Gopro gimbals, like XA, Tarot, Happymodel, etc
- CNC high strength motor mount holder
- Reserve APM anti-vibration install hole, suit for APM2.5/2.6/2.8/Pixhawk open source fligh controller, and with enough space for DJI, XA, Zero UAV commercial flight controller
Product Details
- 16mm CF arm, PCB solder joint Center Plate
- Wheelbase: 580mm
- Weight: 64g
- Motor suggest: 2212 2216 3108 3110 3508 3510 4108 4110 etc
- Suggest 10-15inch propeller
- Battery suggest: 3S 2200/2600/4000/5000 to 4S 2600/4000/5000

  • 100 Units in Stock

Be the first to write a review.  Write a Review.
Safety Tip

This product was added to our catalog on Wednesday 07 January, 2015.



Rc-toys Multi Rotor safty Tip Keep your PROPS OFF not installed until you are fully conversant/understand in full the functions of your Tx in full including TRAV (end Points), the arm and disarm procedures - realise that for a noob skiping or out-of-order set-up steps or moving sticks, or even static - PROPS may start at anytime without warning. Never install props prior to calibration of the ESC and testing the gyro orientation, and arm/disarm testing of the board - YOU are responsible - make sure your actions and your Copter is safe. Never ASSUME the props will not start - removing the props removes the risk.
