Features DJI E-series E300 Tuned Propulsion System for Multirotors w/ 4pcs Motor
ESC 4 Pairs Propeller
The E series tuned propulsion system is the first power solution of its kind for the multirotor industry. It brings greater aerodynamic efficiency and higher thrust-weight ratio, while increasing reliability, stability and agility.
Product Details
Recommended Load300 g/axis
Maximum Thrust600 g/axis
Working Temperature-5 °C ~ 40 °C
Recommended Battery3S LiPo
Units Per PackageQuad or Hexa
Current15 A OPTO
Signal Frequency30 Hz~450 Hz
Voltage11.1 V~14.8 V
Battery3S~4S LiPo
Stator Size22×12 mm
KV920 rpm/V
Weight50 g
Diameter /Thread Pitch24×11 cm    9.4×4.3 inch

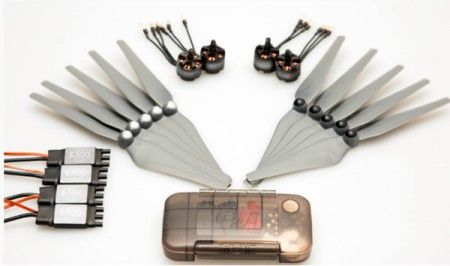

Item Packing
- 4* Motor
- 4* ESC
- 4* Propeller pair
- Parts pack X 1
  • 100 Units in Stock
  • Manufactured by: DJI

Be the first to write a review.  Write a Review.
Safety Tip

This product was added to our catalog on Monday 13 January, 2014.



Rc-toys Multi Rotor safty Tip Keep your PROPS OFF not installed until you are fully conversant/understand in full the functions of your Tx in full including TRAV (end Points), the arm and disarm procedures - realise that for a noob skiping or out-of-order set-up steps or moving sticks, or even static - PROPS may start at anytime without warning. Never install props prior to calibration of the ESC and testing the gyro orientation, and arm/disarm testing of the board - YOU are responsible - make sure your actions and your Copter is safe. Never ASSUME the props will not start - removing the props removes the risk.
