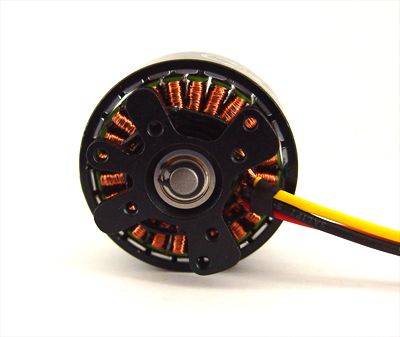

HL W48-30 480KV Outrunner Brushless Disk Type Motor for 6-8 roto


Add to Cart:
Min:  8

  • Description
  • Details
  • Reviews
  • Custom Tab
Features: -HL disk type motors specially designed for multi-rotor aircrafts. -Utilizing 0.2mm Silicon steel sheets. -Well balanced at factory, ensures maximum efficiency and low noise. -Higher g/w ratio, very good choice for muti-rotor application. -New motor mount suits for different mounting spaces. -New prop adaptor design, you can fix the prop with prop adaptor, or mount the new series carbon fiber props directly to the motor without using prop adaptor.

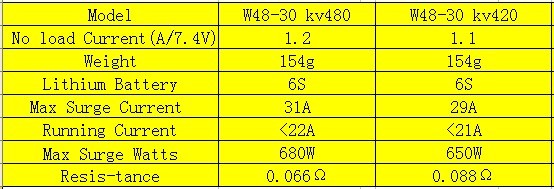

Product Details: -Model: W48-30 480KV -Idel current: 1.2A at 7.4V -Net weight: 154g -Max cell number supported: 6S Lipo -Max current: 31A -Recommended ESC: 40A -Working current: <22A -Max power: 680W -Internal resistance: 0.066Ω Application: specially designed for quadcopter and multi-rotor aircrafts.


  • 100 Units in Stock

Be the first to write a review.  Write a Review.
Safety Tip

This product was added to our catalog on Monday 22 April, 2013.



Rc-toys Multi Rotor safty Tip Keep your PROPS OFF not installed until you are fully conversant/understand in full the functions of your Tx in full including TRAV (end Points), the arm and disarm procedures - realise that for a noob skiping or out-of-order set-up steps or moving sticks, or even static - PROPS may start at anytime without warning. Never install props prior to calibration of the ESC and testing the gyro orientation, and arm/disarm testing of the board - YOU are responsible - make sure your actions and your Copter is safe. Never ASSUME the props will not start - removing the props removes the risk.
