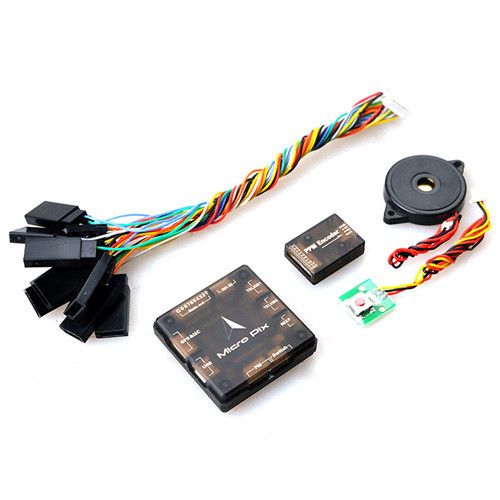

Pix Hawk Micro Racer 32bit Flight Controller for FPV Multicopter Quadcopter air plain with GPS mini Ublox 6M GPS
Micro Pix 32bit Processor Flight Controller for FPV Multicopter Quadcopter Processor:
- 32bit STM32F427 Cortex M4 core with FPU
- 168 MHz
- 256 KB RAM
- 2 MB Flash
- 32 bit STM32F103 failsafe co-processor
- ST Micro L3GD20H 16 bit gyroscope
- ST Micro LSM303D 14 bit accelerometer / magnetometer
- Invensense MPU 6000 3-axis accelerometer/gyroscope
- MEAS MS5611 barometer
Product Details
- Weight: 13g
- Dimension: 38*38*11mm

  • 99 Units in Stock

Be the first to write a review.  Write a Review.
Safety Tip

This product was added to our catalog on Monday 29 February, 2016.



Rc-toys Multi Rotor safty Tip Keep your PROPS OFF not installed until you are fully conversant/understand in full the functions of your Tx in full including TRAV (end Points), the arm and disarm procedures - realise that for a noob skiping or out-of-order set-up steps or moving sticks, or even static - PROPS may start at anytime without warning. Never install props prior to calibration of the ESC and testing the gyro orientation, and arm/disarm testing of the board - YOU are responsible - make sure your actions and your Copter is safe. Never ASSUME the props will not start - removing the props removes the risk.
