Simple BGC 3-axle Brushless Gimbal Controller Alexmos 2.3b5


Add to Cart:

  • Description
  • Details
  • Reviews
  • Custom Tab
- With latest official firmware
- Firmware upgrade is supported when newer official version firmwares available
For more information and trouble shooting, please refer to developer's official website:
Basic soldering iron skills are required.
Product Details
Weight: 17g (including sensor and wire)
Main board size: 50 x 50mm
Power input: max 4S/ 16.8V (12V/ 3S is suggested)
Connection diagram
Brushless gimbals and controllers are very new to the market and it is an emerging technology. You will need some patience and effort to get it to work as seen on youtube etc.. THIS IS NOT A PLUG AND PLAY DEVICE! You will need some understanding of Microsoft windows drivers, software settings and tuning the gimbal software to your liking and to suit your multirotor.
Getting things to work the way it’s supposed to will be YOUR RESPONSIBILITY. Please understand this before you purchase any Brushless Gimbal Related Item.

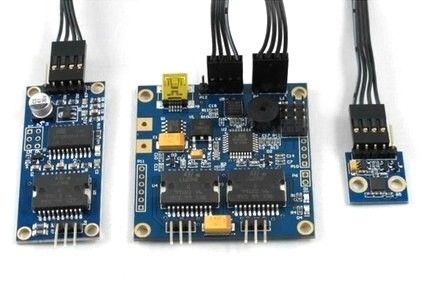

Item Packing
- 1 x BGC Universal Brushless Gimbal Controller main board
- 1 x 3rd axis expansion board
- 1 x sensor
- 1 x metal terminals
Simple BGC 3-axle Brushless Gimbal Controller Alexmos 2.3b5
  • 50 Units in Stock

Be the first to write a review.  Write a Review.
Safety Tip

This product was added to our catalog on Monday 13 January, 2014.



Rc-toys Multi Rotor safty Tip Keep your PROPS OFF not installed until you are fully conversant/understand in full the functions of your Tx in full including TRAV (end Points), the arm and disarm procedures - realise that for a noob skiping or out-of-order set-up steps or moving sticks, or even static - PROPS may start at anytime without warning. Never install props prior to calibration of the ESC and testing the gyro orientation, and arm/disarm testing of the board - YOU are responsible - make sure your actions and your Copter is safe. Never ASSUME the props will not start - removing the props removes the risk.
