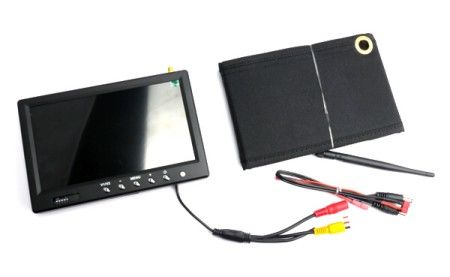

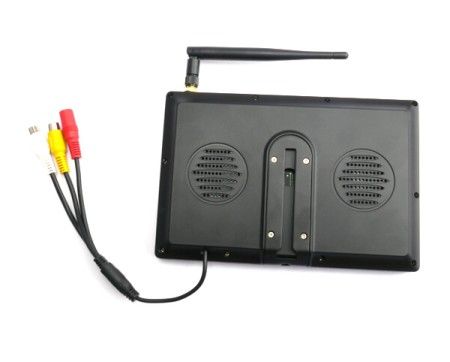

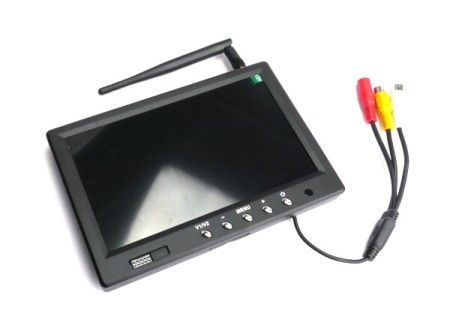

5.8GHz 32CH 7 inch 800x480 LCD FPV Monitor W/Light Shield


Add to Cart:

  • Description
  • Details
  • Reviews
  • Custom Tab
Looking for a monitor compatible with all your 5.8G transmitters of different bands? here come the one for all monitor, all bands 32 channel edition 5.8G receiver integrated monitor.
1. Built-in 5.8G Receiver
2. Not affect by 2.4GHz R/C Radios, no blue-screen effect.
3. Small, light weight, durable
4. All bands, 32 channels edition, compatible with all 5.8G FPV devices currently available on market, including fat shark, boscam 5.8G transmitters.
Product Details
5.8GHz 32CH 7 inch 800x480 LCD FPV Monitor W/Light Shield All bands 32CH Edition
1. Video input, Audio(Lotus head RCA interface)
2. Power input: DC 12V
3. Sensitivity:- 90dBm; Antenna:5dBi
4. Screen size: 7’’; Resolution : 800 x 480
5. Brightness: 400-450cd/m2
6. View Angle: 70°/70°,50°/70°(L/R,U/D)
7. Video color mode:PAL-4.43; NTSC-3.58(automatically recognizes)
8. Working Voltage: DC12V
9. Power Consumption: ≤6w
10. Working temperature: -20℃~ 60℃
11. Size:180(W)×120(H)×23(D)mm
About Menu
Menu:Light, contrast, Color, Language, Picture mode
Press MENU to inter menu, press +- to adjust.
Press V1/V2 to switch video channel

  • 100 Units in Stock

Be the first to write a review.  Write a Review.
Safety Tip

This product was added to our catalog on Monday 25 November, 2013.



Rc-toys Multi Rotor safty Tip Keep your PROPS OFF not installed until you are fully conversant/understand in full the functions of your Tx in full including TRAV (end Points), the arm and disarm procedures - realise that for a noob skiping or out-of-order set-up steps or moving sticks, or even static - PROPS may start at anytime without warning. Never install props prior to calibration of the ESC and testing the gyro orientation, and arm/disarm testing of the board - YOU are responsible - make sure your actions and your Copter is safe. Never ASSUME the props will not start - removing the props removes the risk.
