Multirotor FPV Flyman Frame ARF W/ 3 Axis Smart Gopro Brushless


$715.00

 Sold Out

  • Description
  • Details
  • Reviews
  • Custom Tab
Features

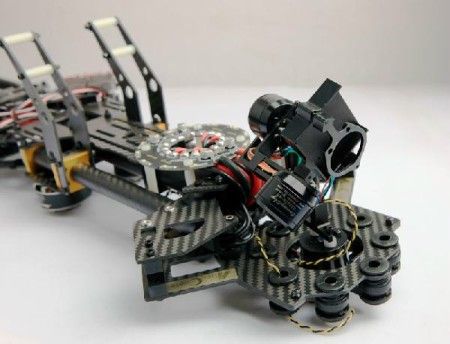

Bumblebee assembly version, all parts have been assembled, players after the purchase, direct flight control installation debugging can fly. Contains the new 3 axis gopro brushless Gimbal, Gimbal without debugging, work on electricity.

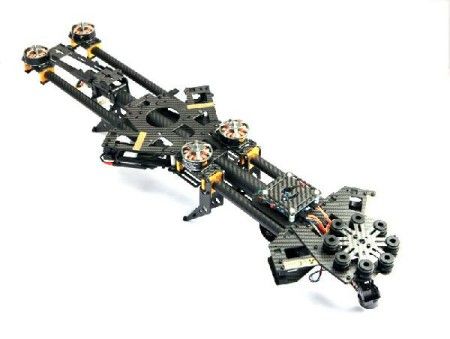

1, Bumblebee/FlyMan frame assembly complete version of the X1

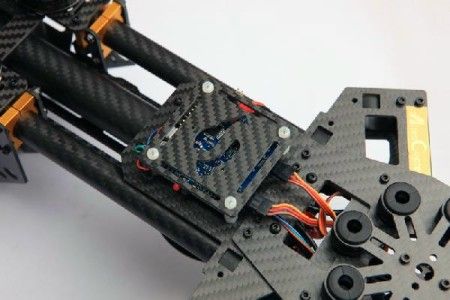

2, Energy ring section board X1 (installed)

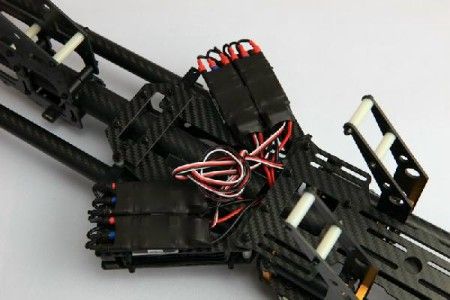

3, Good surplus platinum 30 a electric X4 (installed)

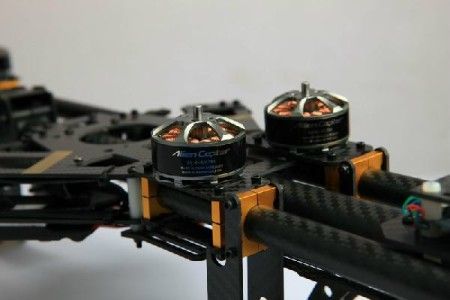

4 3510 KV700 AilenCoper motor x 4(installed)

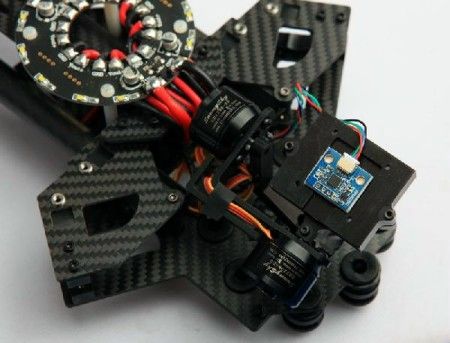

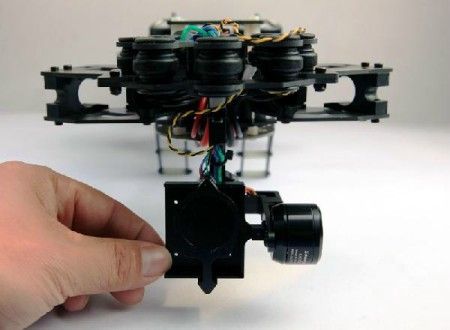

5, 3 axis gopro gimbal X1 (debug)
Do not include: flight control Gopro and battery, need to purchase another
Product Details
-Product name: 2014 airfoil bumblebee assembly / 3 axis Gopro brushless gimbal
-Manufacturer number: AQ - KIT3
-Product material: 3 k carbon fiber
-The machine arm diameter: D16
-Center plate thickness: 2 mm carbon plate
-Take-off weight: 2.5-2.5 kg
-Dimension: 753 * 423 mm
-Folding size: 787 * 203 mm
-Empty machine weight: 580 g excluding gimbal
-Rack shaft number: 4 axis
-The motor configuration: 3510-700 kv
-Gimbal configuration: 3 axis brushless Gimbal Gopro
-Gimbal motor: 2208-80T
-Control panel: BGC official licensed
-Electric adjustment: 30 a 6 s good company
-Propeller: 12 * 3.8 carbon fiber and OARS
-Recommend a battery: 4 s 5000 mah lithium electricity
Item Packing
-bumblebee frame X 1
-3510-700 kv motors X 4
-Hobbywing 30A ESC X 4
-3 axial brushless Gimbal x 1
-3.1 BGC official version of the driver board x 1
-energy in line board x 1






  • 0 Units in Stock

Be the first to write a review.  Write a Review.
Safety Tip

Product 32/58

 Prev
 All
 Next

This product was added to our catalog on Monday 03 March, 2014.

Content

OFFTHEGRIDWATER.CA

Rc-toys Multi Rotor safty Tip Keep your PROPS OFF not installed until you are fully conversant/understand in full the functions of your Tx in full including TRAV (end Points), the arm and disarm procedures - realise that for a noob skiping or out-of-order set-up steps or moving sticks, or even static - PROPS may start at anytime without warning. Never install props prior to calibration of the ESC and testing the gyro orientation, and arm/disarm testing of the board - YOU are responsible - make sure your actions and your Copter is safe. Never ASSUME the props will not start - removing the props removes the risk.
